Products

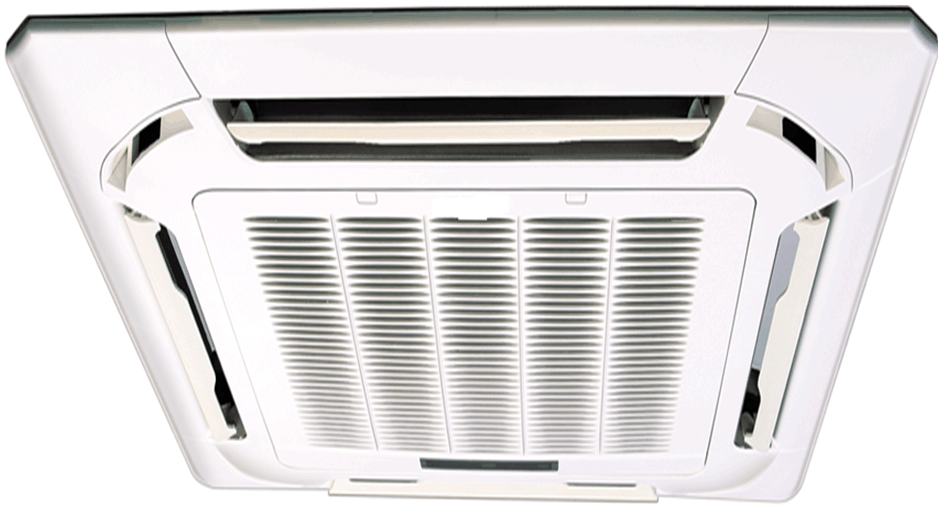

CASSETTE TYPE AIR CONDITIONERS

Applications   Features
  • COMMERCIAL SEGMENT.
  • HOSPITALS
  • CORPORATES
  • GOVT. ORGANIZATIONS
  • PUBLIC WORKS DEPARTMENT
  • DEFENCE, AIR FORCE, INDIAN RAILWAYS

  • COST EFFECTIVE COOLING.
  • LOW NOISE
  • 4 WAY AIR DISTRIBUTION
Technical specification for Cassette air conditioner series
Type/  Model   CASSETTE HGCAS36 CASSETTE HGCAS42 FLOOR STANDING HGFS36 FLOOR STANDING HGFS42
Power supply Ph-V-Hz 3PH- 440V-50Hz 3PH-440V-50Hz 3PH-440V-50Hz 3PH-440V-50Hz
COOLING CAPACITY W 10200 12400 10200 12400
POWER CONSUMPTION W 3680 5080 3680 5080
Rated current A 18.0 22.0 18.0 22.0
EER 2.91 2.44 2.91 2.91 2.44
Compressor

Reciprocating/ Scroll

 Reciprocating/ Scroll Reciprocating/ Scroll Reciprocating/ Scroll Reciprocating/ Scroll
Moisture Removal (L/h) 1.5 1.5 1.5 1.5
inside noise level dB(A) 42 42 42 42
Unit Dimension
1. INDOOR		 (W*H*D) mm 840*230*840 840*230*840 1900*605*330 1900*605*330
2.OUTDOOR (W*H*D) mm 870*655*322 870*655*322 870*655*322 870*655*322
Net/Gross weight (Indoor/Outdoor) Kg 30/60 30/50 40/55 40/60
Refrigerant type   R22 R22 R22 R22
Features Remote Control Auto /Restart On/Off Timer Sleep mode Dehumidification Fan speed setting AIR DIRECTION

OPTIONAL
YES
YES
YES
YES
YES
  4 WAY

 OPTIONAL
YES
YES
YES
YES
YES
  4 WAY		 OPTIONAL
YES
YES
YES
YES
YES
  4 WAY		 OPTIONAL
YES
YES
YES
YES
YES
  4 WAY
